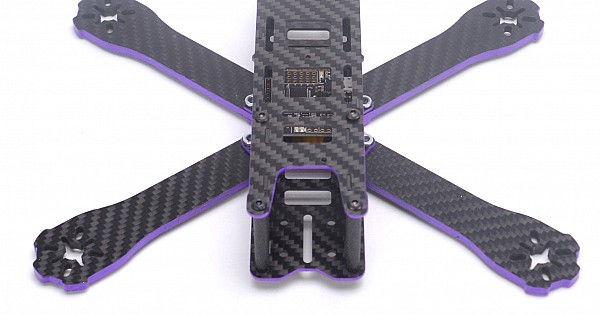

🏁 X220 Carbon Fiber Frame – 220mm FPV Racing / Freestyle Drone Frame
₹2,149.00
The X220 Carbon Fiber Frame is a versatile, high-strength 220mm quadcopter frame designed for FPV racing and freestyle flight. The classic X-geometry offers balanced weight distribution, improved cornering, and predictable flight behavior—making the X220 an excellent choice for both beginners and professional FPV pilots.
Built from 3K carbon fiber, the X220 delivers outstanding durability while maintaining a lightweight profile for aggressive flying, speed runs, and freestyle tricks.
Quantity
⭐ Key Features
✔ 3K Toray Carbon Fiber Construction
Strong, rigid, crash-resistant design suitable for beginner and pro pilots.
✔ True-X 220mm Layout
Provides excellent stability, roll responsiveness, and overall flight precision.
✔ 4mm Replaceable Arms
Resists vibration and crashes; arms can be replaced individually.
✔ Compatible With Modern AIO or Stack Flight Controllers
Fits 30.5×30.5mm stacks and 20×20mm AIO boards.
✔ Supports 5-Inch Propellers
Ideal for FPV racing, freestyle, and acrobatic flight.
✔ Optimized Camera Placement
Fits Mini or Micro FPV cameras (19–22mm width).
📘 Technical Specifications
| Parameter | Details |
|---|---|
| Wheelbase | 220mm |
| Geometry | True-X |
| Material | 3K Carbon Fiber |
| Arm Thickness | 4mm |
| Top Plate Thickness | 2mm |
| Bottom Plate Thickness | 2mm |
| Motor Mount | 16×19mm (2205–2207 motors) |
| Stack Mounting | 30.5×30.5mm M3 (supports FC + ESC stacks) |
| Camera Mount | Mini/Micro FPV cameras |
| Battery Mount | Top or Bottom |
| Recommended Prop Size | 5-inch |
| Weight | ~110g (frame only) |
⚙ Recommended Hardware Setup
Motor KV
-
4S setup: 2300KV–2750KV
-
6S setup: 1700KV–2100KV
ESC Recommendation
-
30A – 45A BLHeli_32 / BLHeli_S ESCs
Battery
-
4S 1300–1500mAh (freestyle)
-
6S 1050–1300mAh (racing)
Propellers
-
5-inch props: 5040, 5045, 51466, 5150 etc.
📦 Package Includes
-
1 × Carbon Fiber Bottom Plate
-
1 × Carbon Fiber Top Plate
-
4 × 4mm Strong Carbon Fiber Arms
-
1 × FPV Camera Mount Set
-
1 × Hardware Screw Pack
-
1 × Battery Strap
