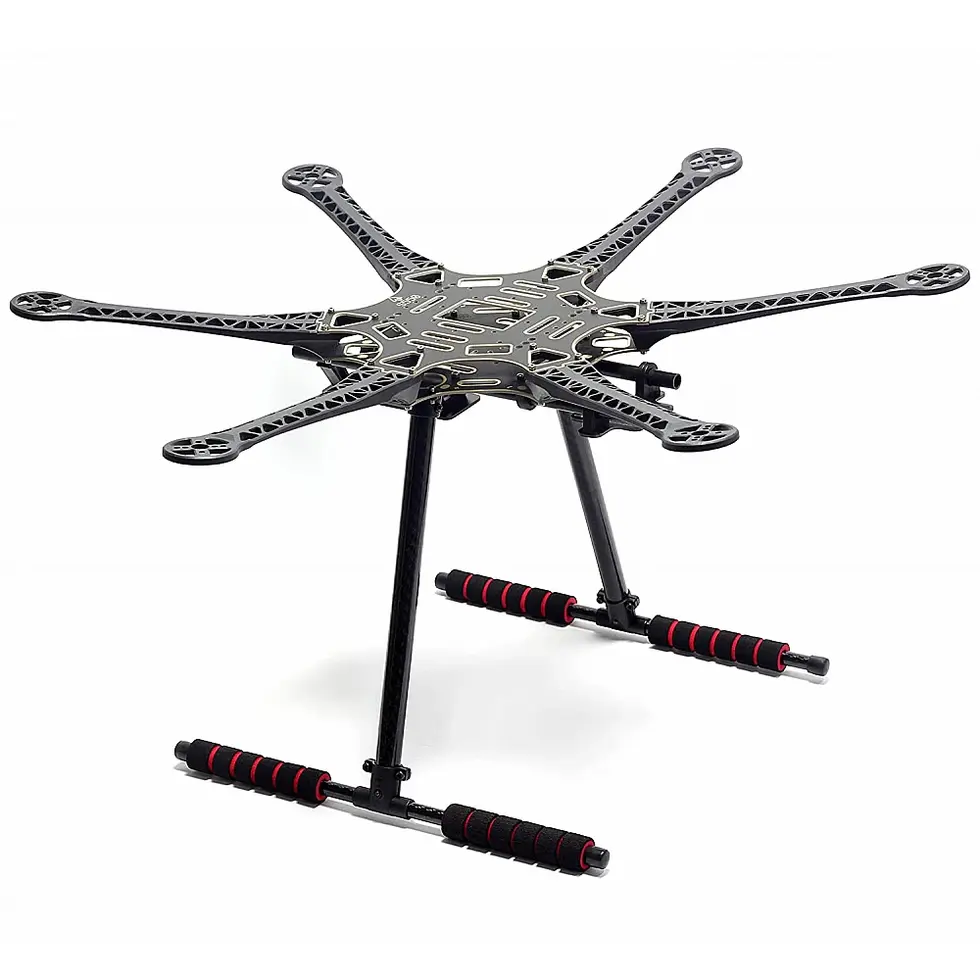

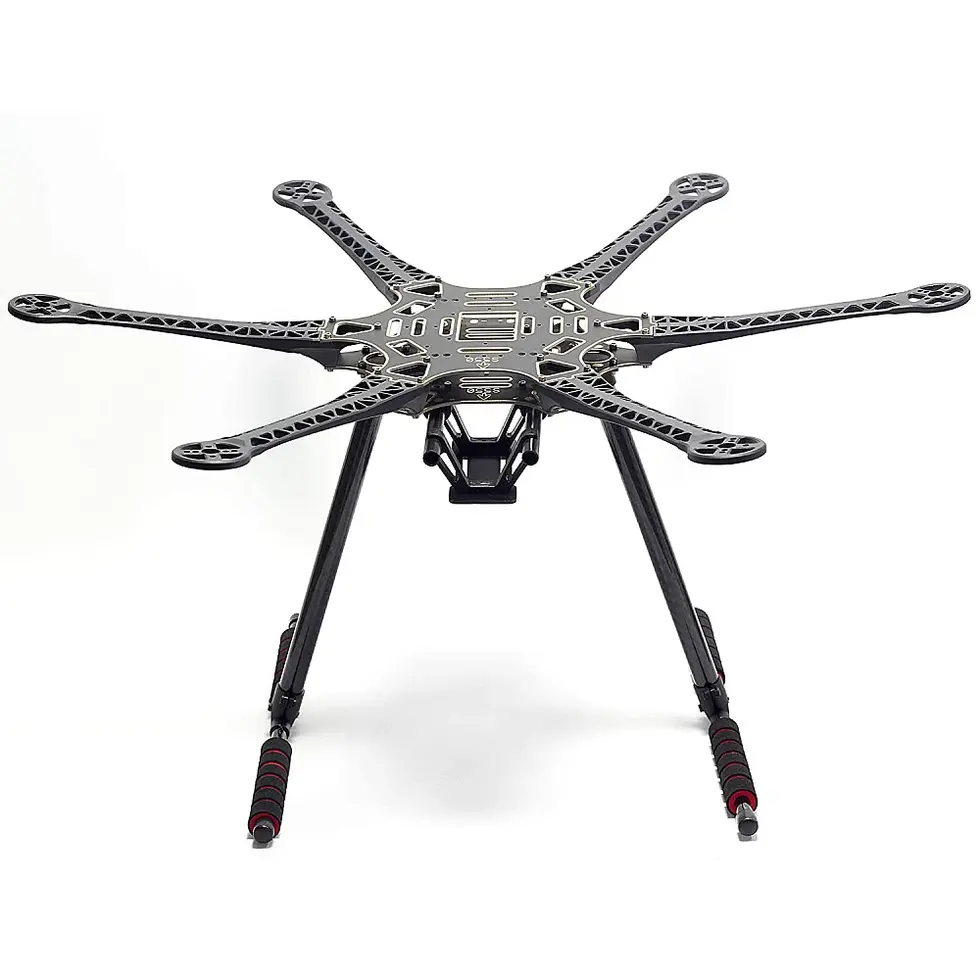

🛩️ S550 Hexacopter Frame – 550mm Hexa Drone Frame (Upgraded Version of F550)
₹5,349.00
High-Strength Modular Hexacopter Frame for APM / Pixhawk | Reinforced Arms | Better Cooling | Pro Stability
The S550 Hexacopter Frame is an upgraded, more rigid, and more aerodynamic version of the F550. It is widely used in India for FPV cinematic drones, heavy-lift projects, agricultural prototype drones, mapping drones, and college UAV projects.
Its modular arm structure, reinforced center plate, and improved airflow design make it superior in durability and long-term reliability.
Quantity
⭐ Key Features
✔ Improved Strength & Less Vibration
Compared to the standard F550:
-
Stronger arm design
-
Less flex under load
-
Better vibration isolation for flight controllers
Ideal for long-range & smooth cinematic flying.
✔ Modular Detachable Arms
Arms can be replaced individually without dismantling the whole frame.
Reduces maintenance time & cost.
✔ Better Motor Cooling
Hollow-arm airflow improves motor cooling during extended flights.
✔ Supports Heavy Payloads
Perfect for:
-
HD camera rigs
-
2-axis/3-axis gimbals
-
LiDAR setup
-
Large batteries (up to 4S 7000mAh or dual setup)
✔ Compatible With All Popular Flight Controllers
-
Pixhawk
-
APM 2.8
-
Matek F405/F722
-
SpeedyBee F405
-
F4/F7 stacks
📘 Technical Specifications
| Parameter | Details |
|---|---|
| Model | S550 Hexacopter |
| Wheelbase | 550 mm |
| Material | High-strength ABS arms + Reinforced glass-fiber center plates |
| Frame Type | Hexacopter (6 motors) |
| Motor Mount | 16×19 mm |
| Propeller Size | 10–12 inch |
| Weight | ~650 g |
| Takeoff Weight Capacity | 2.5 – 3.5 kg (depends on motors) |
| Battery Recommended | 3S–4S (5200mAh–7000mAh) |
| Flight Controller Mount | 45×45mm & 30×30mm holes |
| Arms Color | Red/Black/White mix |
⚙ Recommended Hardware Setup
Motor KV
-
3S LiPo: 1000KV – 1100KV
-
4S LiPo: 920KV – 1000KV (best for payload stability)
ESC
-
30A ESC – Standard
-
40A ESC – Payload or long-range setup
Propellers
-
1045
-
1147
-
1245
Battery
-
Single pack: 4S 5200–7000 mAh
-
Dual pack setup: for high endurance
Payload Capacity
-
Light-load FPV: 1.5 kg
-
Gimbal & camera payload: 2–3 kg total takeoff weight
📦 Package Includes
-
1 × S550 Top Plate
-
1 × S550 Bottom Plate
-
6 × Reinforced Arms (Red/Black/White)
-
1 × Screw Set
