🛩️ Martian II 220mm FPV Racing Frame
₹2,849.00
The Martian II 220mm Frame is one of the most popular and time-tested FPV racing/freestyle frames in the world. Known for its strong carbon-fiber structure, clean geometry, and excellent flight performance, the Martian II offers unbeatable durability and value — making it ideal for beginners AND pro pilots.
With wide compatibility, removable arms, and a spacious layout for modern FPV electronics, the Martian II remains a top choice for 5-inch freestyle builds in India.
Quantity
⭐ Key Features
✔ 3K Toray Carbon Fiber Build
High-strength construction designed to survive heavy crashes and freestyle abuse.
✔ True-X 220mm Geometry
Stable, predictable, and precise — ideal for both racing and freestyle.
✔ 4mm Thick Replaceable Arms
Resists bending and vibration; damaged arms can be replaced individually.
✔ Compatible With Modern FPV Gear
Supports 30.5×30.5mm FC stacks, AIO boards, mini cameras, and popular VTX options.
✔ Vibration-Free Design
Thick arms + rigid plates reduce oscillations for cleaner tuning and smoother footage.
✔ Beginner-Friendly Build Layout
Spacious interior for wiring, ESCs, PDB, RX, and VTX placement.
📘 Technical Specifications
| Parameter | Details |
|---|---|
| Wheelbase | 220mm |
| Material | 3K Carbon Fiber |
| Arm Thickness | 4mm |
| Top Plate Thickness | 2mm |
| Bottom Plate Thickness | 2mm |
| Camera Mount | Mini/Micro FPV Camera (19–22mm) |
| Motor Mount Pattern | 16×19mm (2205–2207 motors) |
| Flight Controller Mount | 30.5×30.5mm (M3 holes) |
| Battery Mount | Top-mount |
| Prop Size | 5-inch |
| Approx Weight | 140–160g |
⚙ Recommended Hardware Setup
Motors
-
2205 / 2206 / 2207
-
KV Range:
-
4S builds: 2300KV–2750KV
-
6S builds: 1700KV–2100KV
-
ESC
-
30A–45A BLHeli_32
or -
20A–30A BLHeli_S (budget)
Battery
-
4S 1300–1500 mAh
-
6S 1050–1300 mAh
Props
-
5-inch: 5045, 51466, 5150, 5051, 51499 etc.

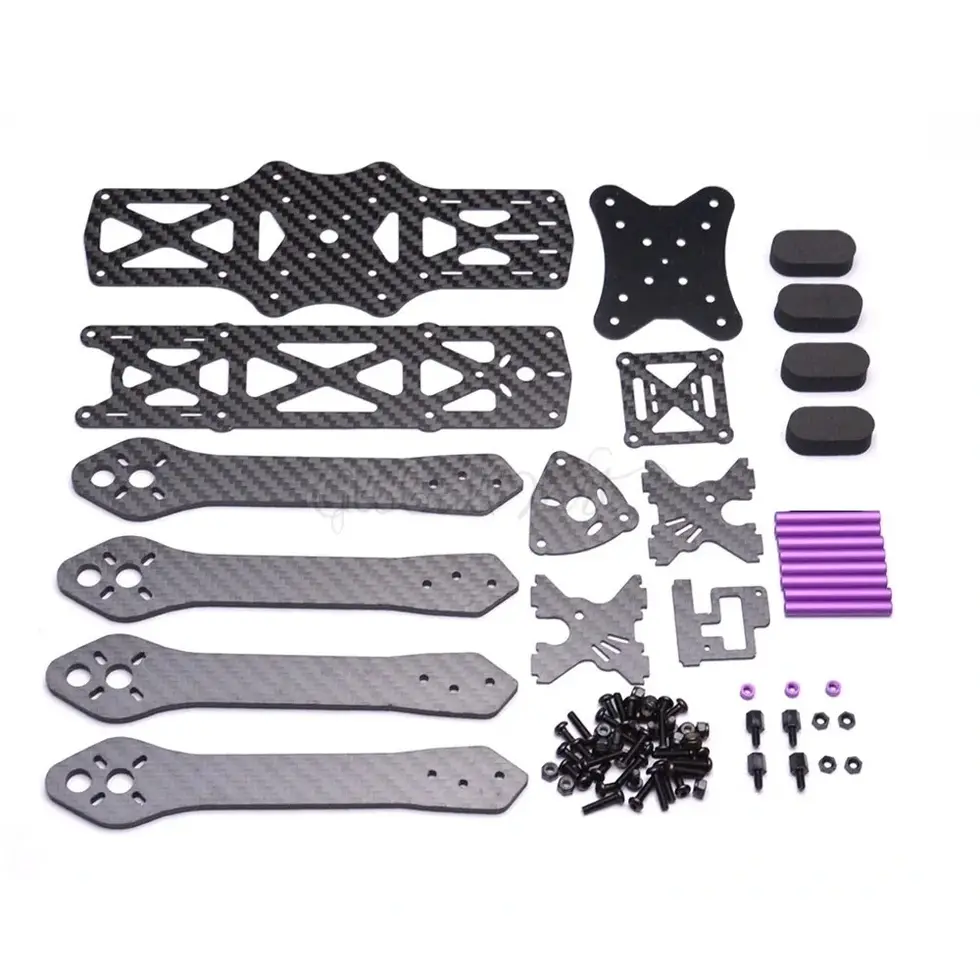

📦 Package Includes
-
1 × Martian II Carbon Fiber Top Plate
-
1 × Martian II Carbon Fiber Bottom Plate
-
4 × 4mm Carbon Fiber Arms
-
1 × Camera Side Plate Set
-
1 × Screw & Spacer Kit
-
1 × Battery Strap
